ArabicFlatline Wire

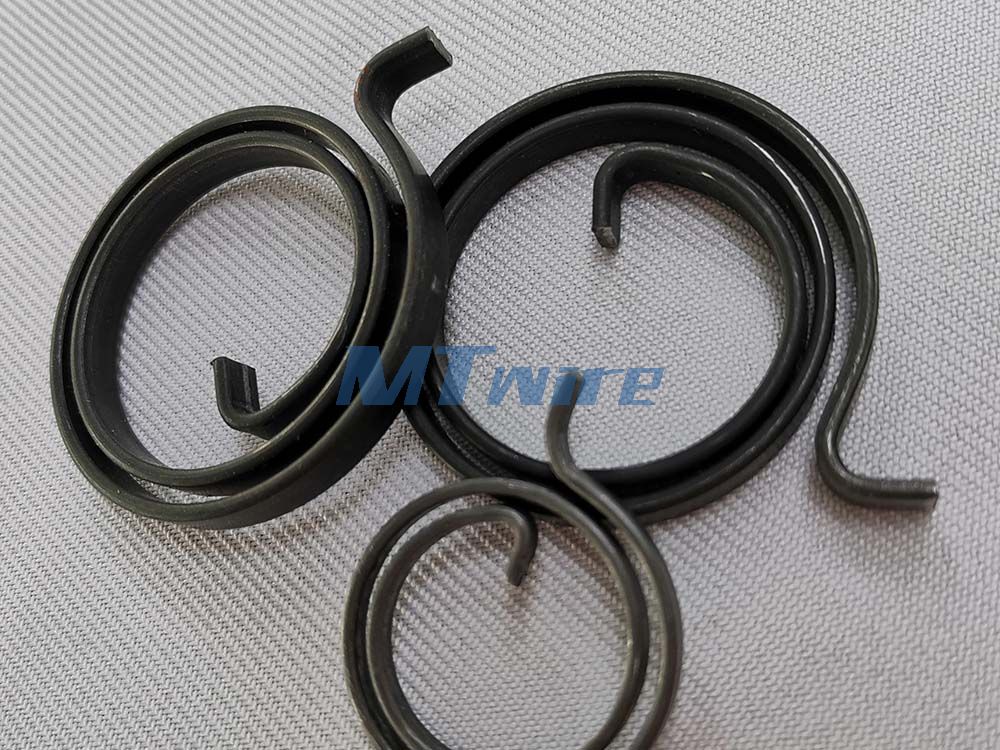

Quenched Tempered Spring Profile Flatline Wire Shaped Supplier ASTM 1070
MTSCO, an expert in Flatline Wire fabrication, boasts a rich 17-year history in steel wire production, fortified by sophisticated manufacturing techniques and robust management expertise. Our Flatline Wire stands out for its unique flat profile, and its versatility across materials such as stainless steel, carbon steel, nickel alloys, and oil-tempered steel. With prominent utilization across the electronics, aerospace, and automotive sectors, our Flatline Wire is consistently lauded for its commendable strength and outstanding resistance to heat and corrosion.
Quenched Tempered Shaped Spring Wire Flatline Wire Supplier ASTM 1070
Product name: Shaped Wire
Material: ASTM 1070, 1566, 9260, 6150, 1035, 1045, SAE9254, SWRH72A, SWRH72B, SCM435, SCM432,etc.

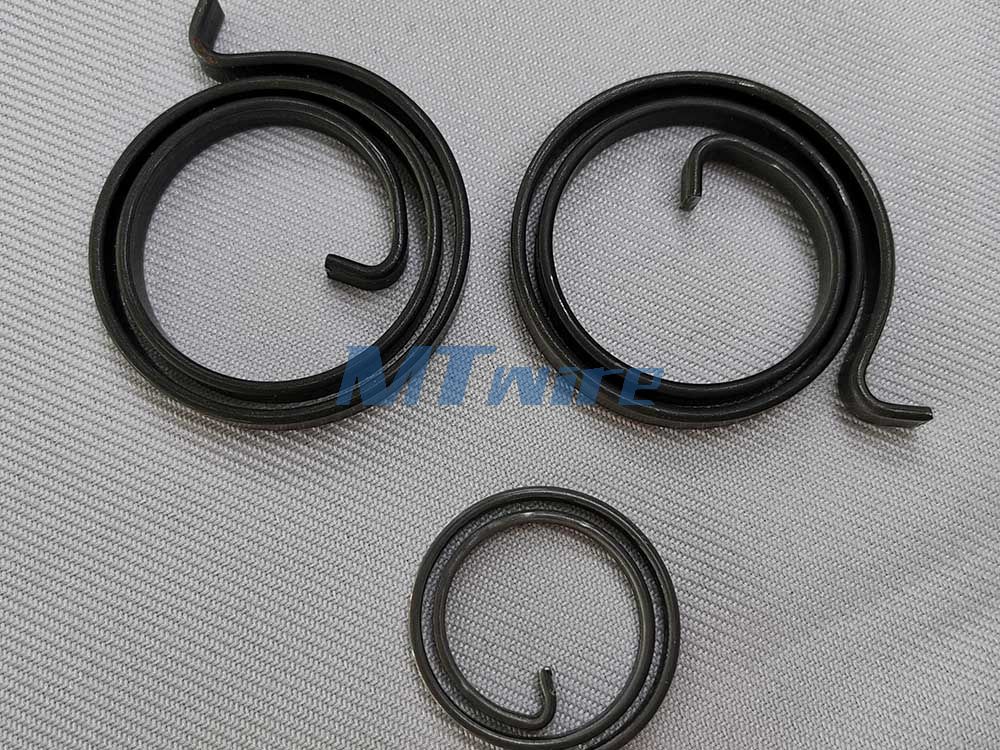

Use: Clutch spring, Speed springs, Brake springs, etc.
Standard: GTB/18983-2017,EN10270-2,DIN17223-2, ASTMA229/A230/A401/A877, JSG3560/3561, etc.
Diameter: φ1.8mm -φ16mm

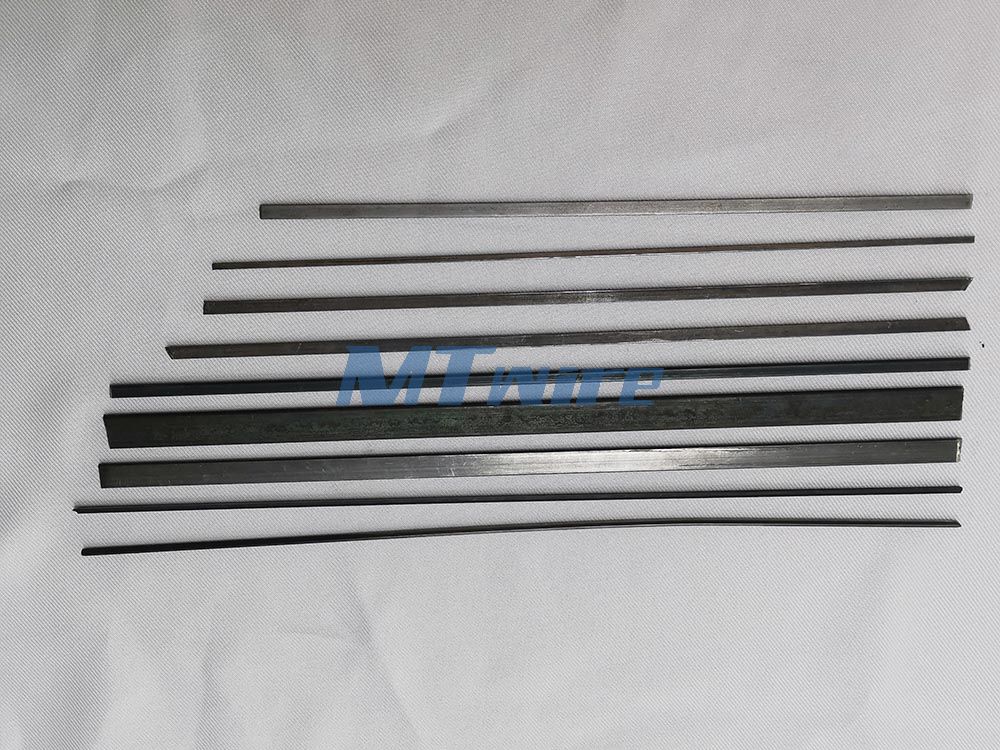

Cross section: Special-shaped steel bars with circular and various non-circular sections
Oil Quenching - tempering: A wire that is drawn to the finished size and quenched and tempered in a continuous furnace. The unwound wire is first heated to full austenitizing temperature in a continuous furnace and then quenched by oil bath Martensite, and then through the continuous furnace tempering, to obtain the expected strength and toughness. Oil quenching - tempering steel wire straightness is good, the uniformity of mechanical properties, made of components or components only after low temperature stress treatment that can be used directly.
| Grade | Chemical Composition | ||||||||
| C | Si | Mn | Cr | V | B | P | S | other | |
| 1566 | 0. 62- 0. 70 | 0.17- 0. 37 | 0. 90- 1.20 | ≤0. 25 | 0.035 | 0.035 | |||
| 9255 | 0. 52- 0. 60 | 1.50- 2. 00 | 0. 60- 0. 90 | ≤0. 35 | 0.035 | 0.035 | |||
| 9260 | 0. 56- 0. 64 | 1.50- 2.00 | 0. 60- 0. 90 | ≤0.35 | 0.035 | 0.035 | |||
| 9260 | 0. 56- 0. 64 | 1.60- 2. 00 | 0. 60- 0. 90 | ≤0.35 | 0.03 | 0.03 | |||
| 5155 | 0. 52- 0. 60 | 0. 17- 0. 37 | 0. 65- 0. 95 | 0. 65- 0. 95 | 0.03 | 0.03 | |||
| 5160 | 0. 56- 0.64 | 0. 17- 0. 37 | 0. 70- 1.00 | 0. 70- 1.00 | 0.03 | 0.03 | |||
| 6150 | 0. 46- 0. 54 | 0.17- 0. 37 | 0. 50- 0. 80 | 0. 80- 1.10 | 0. 10- 0. 20 | 0.03 | 0.03 | ||
| 51860 | 0. 56- 0. 64 | 0. 17- 0. 37 | 0. 70- 1.00 | 0. 70- 1.00 | 0. 0005- 0. 004 | 0.03 | 0.03 | ||
| 51B60 | 0. 52- 0. 60 | 0. 70- 1. 00 | 0. 70- 1.00 | ≤0.35 | 0. 08- 0. 16 | 0. 0005- 0.0035 | 0.03 | 0.03 | |
| 1070 | 0.67-0.75 | 0.17-0.37 | 0.50-0.80 | ≤0. 25 | ≤0.35 | ≤0.35 | |||
 |  |
Quality Control for Steel Wire
Raw Material Quality Assurance:
MTSCO is a professional supplier of steel wire with complete production technology and rich management experience. We produce spring wire, electrolytic polished wire, fine wire, wire for netting, hose wire, welding wire, cold heading, locking wire, and other products. Our main materials are stainless steel and alloy steel, and the raw materials we use are from the biggest and most well-known steel mills in China, we can supply wire in sizes ranging from 0.15 mm to 16 mm in diameter. Our factory is well-equipped and our products conform to ASTM, DIN, GTB, JIS, JSG, and other international standards. We have experienced foreign trade staff with high-quality service and can produce high-quality products according to customers' requirements.
Quality Control
Why Choose MTSCO?
Factory Complex
Provide you with cost-effective products and professional services.
One stop procurement of wire products
Leave the complexity to Mtsco and the simplicity to you.
After the test of time for 18 years
Whether the products, services, capital and strength, Mtsco is your optimum partner.
