Stainless Steel 309S/310S Cold Heading Wire Drawing Wire
Cold heading is the process of forging metal at temperatures close to room temperature without any additional heat. The hardness, yield strength and tensile strength of the metal can be improved by cold working.

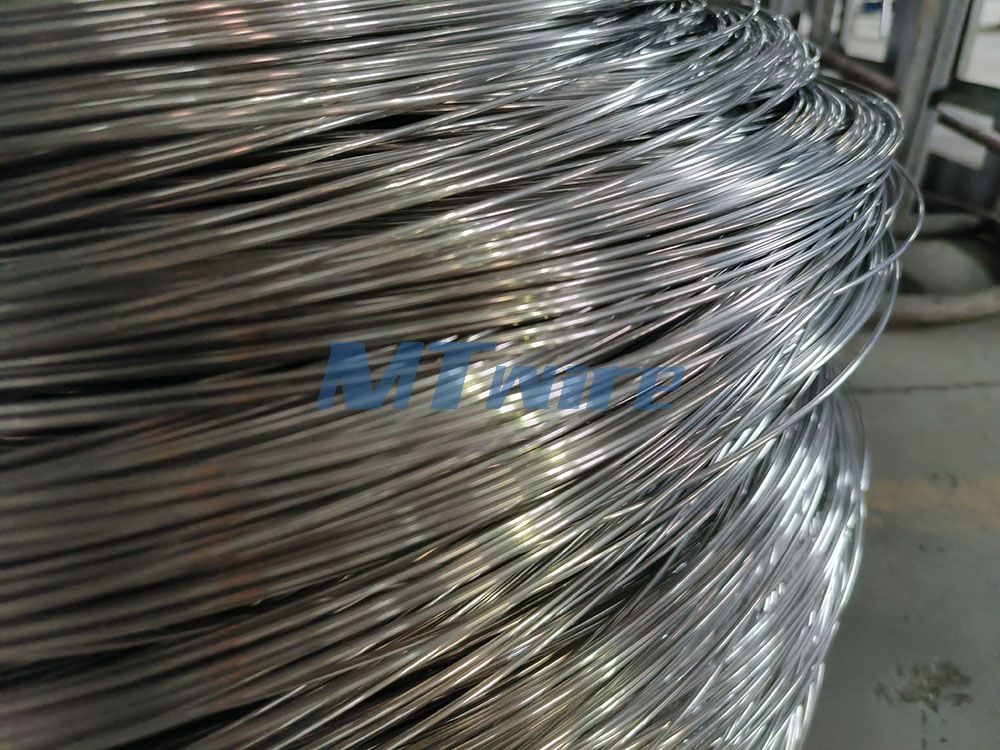

Stainless Steel 309S/310S Cold Heading Wire Drawing Wire
Material: Stainless Steel Wire
Grade: 300series (309S, 310S, 304, 304L, 304H, 304N, 304ES, 316L, 321...) 130M, 200CU, 201CU, 202, , 410, 420, 430,etc
Standard: ASTM A580, JIS G4309, EN 10088-3, GB/T4240, etc
Size: φ0.15mm-φ16mm; or according to customers' requests
Surface: Bright, matte ,downy, electrolysis bright ,cloudy ,plain ,black,etc
Condition: Annealed and Soft, 1/2 hard, 3/4 hard and full hard
Type: Cold heading wire (B-SPR/D-SPR)
Packing: Woven bag, core, wooden reel, etc
Cold heading is the process of forging metal at temperatures close to room temperature without any additional heat. The hardness, yield strength and tensile strength of the metal can be improved by cold working.
Cold heading wire is mainly used for various kinds of fasteners manufacturing, for example: precision screws, bolts and nuts etc. And also in manufacturing rivet, nail, stable, pins for construction and automotive.
| Steel Grade | Chemical composition | ||||||||
| C | Si | Mn | P | S | Ni | Cr | Mo | Other composition | |
| 309 | ≤0.20 | ≤1.0 | ≤2.0 | ≤0.045 | ≤0.01 | 12.0-15 | 22.0-24.0 | ||
| 309S | ≤0.08 | ≤1.0 | ≤2.0 | ≤0.045 | ≤0.01 | 12.0-15 | 22.0-24.0 | - | - |
| 301S | ≤0.08 | ≤1.5 | ≤2.0 | ≤0.045 | ≤ 0.030 | 19.0-22.0 | 24.0-26.0 | ||
|  |
| Wire Type | Grade |
| Bolts&Nuts Wire (B&N) | 316L, 316, 302HQ, 305, 304HC3, 304HC2, 304HC, 304L, 304ES, 201CU, 200CU, 200CU3, D667, 430,etc |
| Annealing Wire (ANN) | 316L, 316, 305, 304HC, 304L, 304, 304S, 304ES, 201CU, 200CU, 200CU1, 200CU3,etc |
| Redrawing Wire (RED) | 316L, 316, 305, 304L, 304, 304S, 304ES, 201CU, 200CU, 200CU1, 200CU3,etc |
| Light Drawn Nut Wire (NUT) | 316L, 316, 302HQ, 305, 304HC3, 304HC2, 304HC, 304L, 304ES, 201CU, 200CU, 200CU3, D667, 430,etc |
| Light Drawn Screw Wire (SBN) | 316L, 316, 302HQ, 305, 304HC3, 304HC2, 304HC, 304L, 304ES, 201CU, 200CU, 200CU3, D667, 430,etc |
| Nail Wire (NAI) | 316L, 316, 304HC3, 304HC2, 304HC, 304, 304HCT, 304B, XM304, 304ES, 201CU, 200CU, 200CU3, etc |
| Rivet Wire (RIV) | 316L, 316, 304HC3, 304HC2, 304HC, 304, 304HCT, 304B, 304ES, 201CU, 200CU, 200CU3, etc |
| Chain Riveting Wire (STA) | 304M3, 304HX, 301HX, 304M2, 200CU, 200CU1, etc |
| Electro Polishing Quality Wire (EPQ) | 304, 316, 304ES(T), 201CU, D668/204CU, D667/200CU, 430, 430LXJ1/160, 430LXJ2/180, 410, etc |
| Spoke Wire (SPO) | 304M3, 304HX, 301HX, 304M2, 201CU, 200CU, 200CU1, 200CU3, D668, D667, etc |
| Spring Wire (B-SPR/D-SPR) | 316, 304M3, 304HX, 304, 304H, 301HX, 304M2, 304ES, 130M, 202M, 201CU, 200CU, 200CU1, 200CU3, D666, D667, D668D, 631, etc |
| Bra Wire (BRA) | 304M3, 304HX, 304, 304H, 304ES, 201CU, 200CU, 200CU1, D667, D668, etc |
| Weaving Wire (WEA) | 314, 310S, 309S, 316L, 316, 304HC3, 304HC2, 304HC, 304, 304HCT, 304B, XM304, 304ES, 201CU, 200CU, 200CU1, 200CU3, D666, D667, D668, etc |
| Steel Ball Wire (GQX) | 316L, 316, 304HC3, 304HC2, 304HC, 304, 304HCT, 304B, XM304, 304ES, 201CU, 200CU, 200CU3, etc |
| Welding Wire (COR/TIG/MIG/SAW) | ER308, ER308L, ER309, ER309L, ER309LSI, ER316, ER316L, Y310S, ER321, ER347, 430,etc |
| Rod Wire (CGB/CDP/CDB) | 316L, 316, 302HQ, 305, 304HC3, 304HC2, 304HC, 304L, 304ES, 201CU, 200CU, 200CU3, D667, 430,etc |
| Tie Wire (TIE) | 316L, 316, 302HQ, 305, 304HC3, 304HC2, 304HC, 304L, 304ES, 201CU, 200CU, 200CU3, D667, 430,etc |
| Pin Wire (PIN) | 316L, 304L, 304HC, 304S, etc |
MTSCO is a professional supplier of steel wire with complete production technology and rich management experience. We produce spring wire, electrolytic polished wire, fine wire, wire for netting, hose wire, welding wire, cold heading, locking wire, and other products. Our main materials are stainless steel and alloy steel, and the raw materials we use are from the biggest and most well-known steel mills in China, we can supply wire in sizes ranging from 0.15 mm to 16 mm in diameter. Our factory is well-equipped and our products conform to ASTM, DIN, GTB, JIS, JSG, and other international standards. We have experienced foreign trade staff with high-quality service and can produce high-quality products according to customers' requirements.
