Weaving Wire

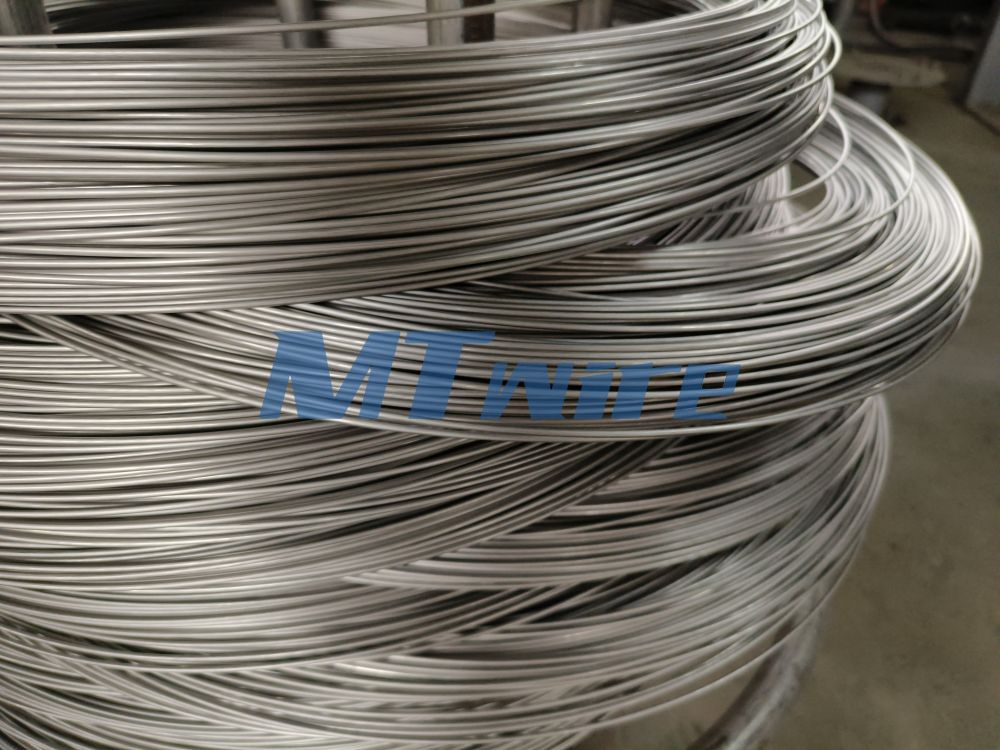

ASTM A580/A581 316/316L/316LN/316N Stainless Steel Weaving Wire
MTSCO is a professional supplier of steel wire with complete production technology and rich management experience. We produce spring wire, electrolytic polished wire, fine wire, wire for netting, hose wire, welding wire, cold heading, locking wire, and other products. Our main materials are stainless steel and alloy steel, and the raw materials we use are from the biggest and most well-known steel mills in China, we can supply wire in sizes ranging from 0.15 mm to 16 mm in diameter.
ASTM A580/A581 316/316L/316LN/316N Stainless Steel Weaving Wire
Material | Stainless Steel Wire |
Grade | 300series (301, 302, 304, 304L, 304H, 304N, 304ES, 316, 316L, 321...) 130M, 200CU, 201CU, 202, , 410, 420, 430,etc |
Standard | ASTM A580, JIS G4309, EN 10088-3, GB/T4240, etc |
Size | φ0.15mm-φ16mm; or according to customers' requests |
Surface | Bright, matte ,downy, electrolysis bright ,cloudy ,plain ,black,etc |
Condition | Annealed and Soft, 1/2 hard, 3/4 hard and full hard |
Packing | Woven bag, core, wooden reel, etc |
Factory advantages:
Steel Grade | DIN | Chemical composition | ||||||||
C | Si | Mn | P | S | Ni | Cr | Mo | Other composition | ||
316 | WNr1.4436 | ≤0.08 | ≤1.0 | ≤2.0 | ≤ 0.045 | ≤ 0.030 | 10.0-14.0 | 16.0-18.0 | 2.0-3.0 | |
316(R0PE) | 0.053 | 0.4 | 1.5 | 0.035 | 0.01 | 10.8 | 17 | 2.2 | ||
316C | ≤0.08 | 50 | ≤2.0 | ≤ 0.040 | ≤ 0.030 | 10.0-14.0 | 16.0-18.0 | 2.0-3.0 | Cu:≤2.8-3.8 | |
316LA | WNr1.4404 | ≤0.03 | ≤0.75 | ≤2.0 | ≤0.045 | ≤ 0.030 | 10.0-14.0 | 16.0-18.0 | 2.0-3.0 | N:≤0.10 |
316LJ | WNr1.4435 | ≤0.08 | ≤1.0 | ≤2.0 | ≤0.045 | ≤ 0.030 | 12.0-15.0 | 16.0-18.0 | 2.0-3.0 | N:≤0.10 |
316N | ≤0.08 | ≤1.0 | ≤2.0 | ≤0.045 | ≤ 0.030 | 10.0-14.0 | 16.0-18.0 | 2.0-3.0 | N:0.10-0.16 | |
316NB | 0.03-0.05 | 0.4-0.7 | 1.4-1.6 | ≤ 0.040 | 0.02-0.03 | 12.0-13.0 | 17.5-18.0 | 2.0-3.0 | Ti:0.005-0.05,Nb:0.004-0.06 | |
316F | ≤0.08 | ≤1.0 | ≤2.0 | ≤0.045 | ≤0.010 | 10.0~14.0 | 16.0-18.0 | 2.0~3.0 | ||
316LF | ≤0.03 | ≤1.0 | ≤2.0 | ≤0.045 | ≤0.010 | 10.0-14.0 | 16.0-18.0 | 2.0~3.0 | ||
316TI | WNM.4571 | ≤0.08 | ≤1.0 | ≤2.0 | ≤0.045 | ≤ 0.030 | 10.0-14.0 | 16.0-18.0 | 2.0-3.0 | Ti:≤0.7 |
316UL | ≤0.02 | ≤1.0 | ≤2.0 | ≤0.045 | ≤ 0.030 | 12.0-15.0 | 16.0-18.0 | 2.0-3.0 | Cu:≤0.6,N:≤0.08 | |
316/316L | ≤0.03 | ≤1.0 | ≤2.0 | ≤0.045 | ≤0.030 | 10.0-14.0 | 16.0~18.0 | 2.0-3.0 | N:≤0.10 |
Application for 316 stainless steel wire:
Steel Grade | Physical Property | |||
Y.S | T.S | EL. | HRB | |
316 | 240 | 580 | 64 | 71 |
316(R0PE) | 227 | 551 | 58 | 74 |
316C | 250 | 610 | 55 | 87 |
316LA | 549 | 62 | ||
316LJ | 213 | 560 | 55 | 79 |
316N | 212 | 560 | 55 | |
316NB | 220 | 540 | 70 | |
316F | 230 | 570 | 58 | 70 |
316LF | 225 | 565 | 46 | 66 |
316TI | 214 | 565 | 65 | 79 |
316UL | 212 | 539 | 58 | |
316/316L | 227 | 551 | 66 | 72 |
Annealed steel wire, also known as annealed tie wire, is a mild steel wire that has been annealed to improve its ductility and reduce its hardness. These qualities improve flexibility without loss of durability, thus giving the wire self-locking and self-locking capabilities.
Annealing wire is upplying good elongation generatrix for other manufactures in the lines of filament drawing, producing fine spring wire, acupuncture wire and pressed wires, etc.
MTSCO is a professional supplier of steel wire with complete production technology and rich management experience. We produce spring wire, electrolytic polished wire, fine wire, wire for netting, hose wire, welding wire, cold heading, locking wire, and other products. Our main materials are stainless steel and alloy steel, and the raw materials we use are from the biggest and most well-known steel mills in China, we can supply wire in sizes ranging from 0.15 mm to 16 mm in diameter. Our factory is well-equipped and our products conform to ASTM, DIN, GTB, JIS, JSG, and other international standards. We have experienced foreign trade staff with high-quality service and can produce high-quality products according to customers' requirements.
