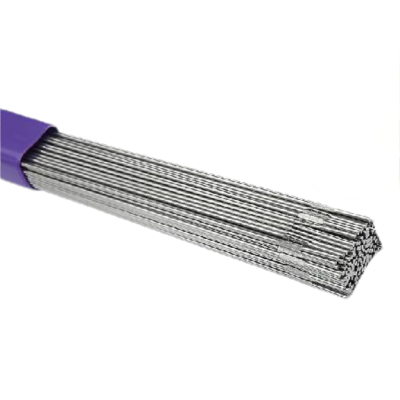

Nickel Alloy Welding Wire ERNi-1 Tig Nickel Cladding Wire Filler Metal
Nickel alloy wires offer excellent corrosion resistance, high temperature stability and strong mechanical properties, making them ideal for use in harsh environments such as chemical processing, power generation, aerospace and marine industries. ER-Ni1 is used for the welding and cladding of Nickel 200 and Nickel 201 alloys.
Nickel Alloy Welding Wire ERNi-1 Tig Nickel Cladding Wire Filler Metal
| Standards |
| EN ISO 18274 – Ni 2061 – NiTi3 |
| AWS A5.14 – ER Ni-1 |
Features and Applications
ER-Ni1 is used for the welding and cladding of Nickel 200 and Nickel 201 alloys.
Ni1 contains enough titanium to control the weld-metal porosity in welding processes.
Typically used in the chemical processing industries, synthetic fiber production & food processing equipment, etc.
Typical Base Materials
Nickel 200 and 201
The illustrative, not exhaustive list
| Chemical Composition % | |||||
| C% | Mn% | Fe% | P% | S% | Si% |
| max | max | max | max | max | max |
| 0.05 | 0.80 | 0.70 | 0.030 | 0.010 | 0.75 |
| Cu% | Ni% | Co% | Ti% | Al% | |
| max | 93.00 | max | 2.00 | max | |
| 0.20 | min | 1.00 | 3.50 | 1.00 | |
| Mechanical Properties | |
| Tensile Strength | ≥410 MPa |
| Yield Strength | ≥200 MPa |
| Elongation | ≥30 % |
| Impact Strength | ≥100 J |
Mechanical properties are approximate and may vary based on the heat, shielding gas, welding parameters, and other factors.
Shielding Gases
EN ISO 14175 – TIG: I1 (Argon)
Welding Positions
EN ISO 6947 – PA, PB, PC, PD, PE, PF, PG
| Packaging Data | |||
| Diameter | Length | Weight | |
| 1.60 mm 2.40 mm | 1000 mm 1000 mm | 5 Kg 5 Kg | |
